Chery EPC: VIN to vehicle data and engine parts (video)
This 46-second recording shows Chery EPC on VINsearch. It starts with the model grid and VIN search, opens a T1E vehicle record, then moves through the Power group to the electric drive and engine assembly drawings. The supplied stills also show the switch-system diagram.
The catalog interface in this recording is in English; the website language changes the walkthrough text.
What happens in the recording

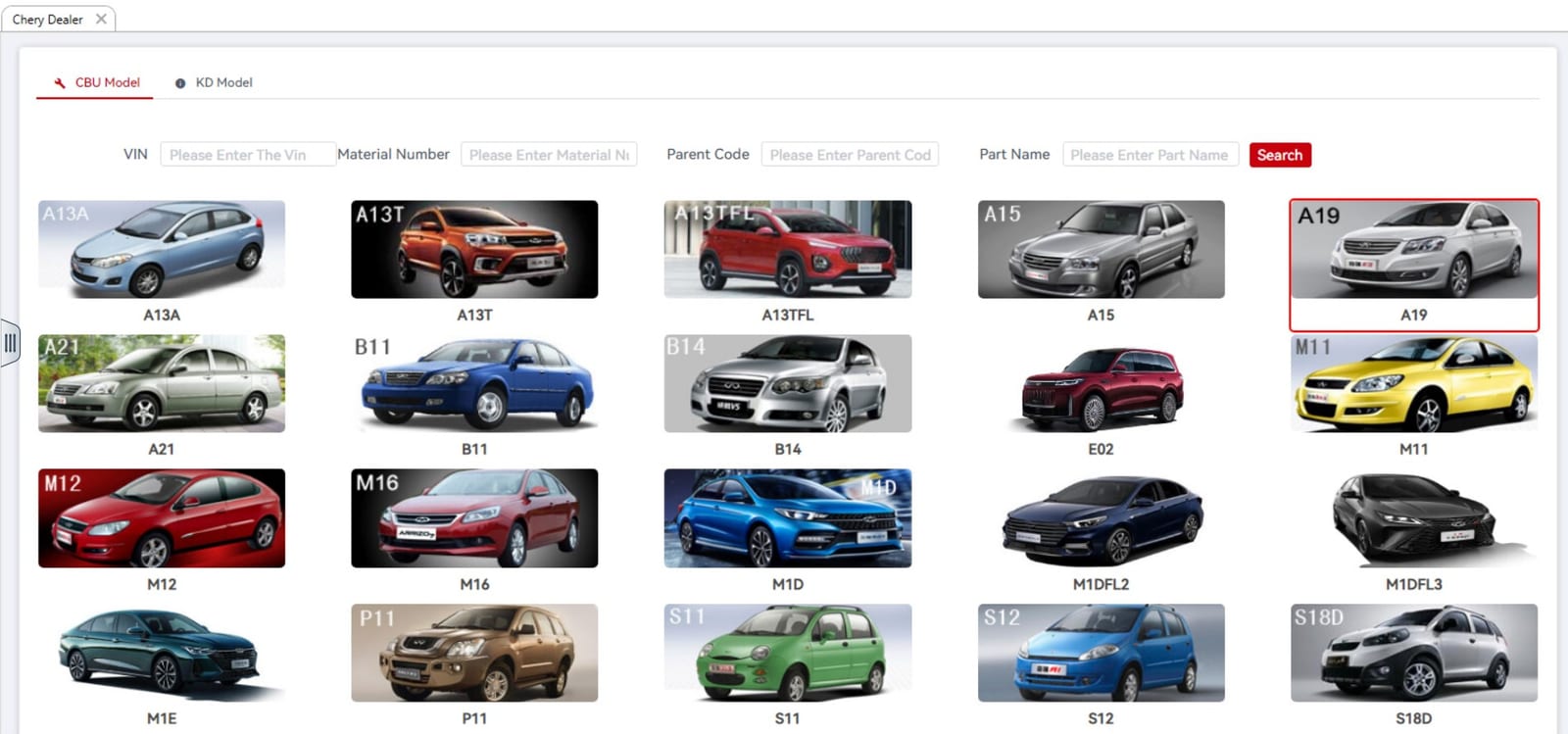

- 0:00 The model grid offers CBU Model and KD Model tabs with searches for VIN, Material Number, Parent Code and Part Name.

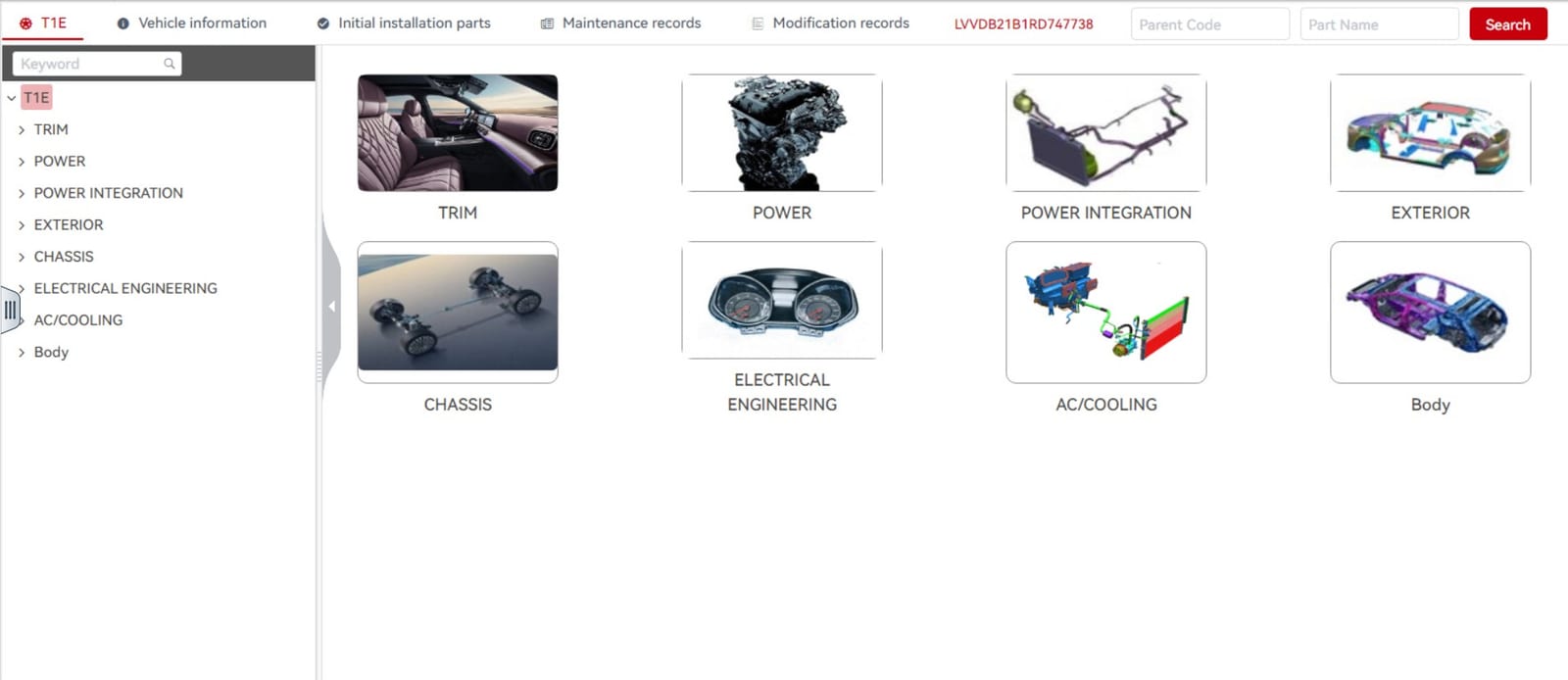

- 0:09 The VIN search opens the T1E catalog and its illustrated main groups.
- 0:13 Vehicle information shows the model codes, production date and configuration fields.
- 0:20 The Power group expands to engine, ECU, transmission control and electric drive assemblies.
- 0:28 Electric Drive Assembly opens a diagram beside a parts table with Applicability Filtration selected.
- 0:38 Engine Assy opens a larger exploded drawing and a scrollable parts list.
What you see on screen
- Main groups include Trim, Power, Power Integration, Exterior, Chassis, Electrical Engineering, AC/Cooling and Body.
- Vehicle information is a separate tab from the assembly catalog.
- Part rows show Parent Code, Part Name, Supplier List and Count.

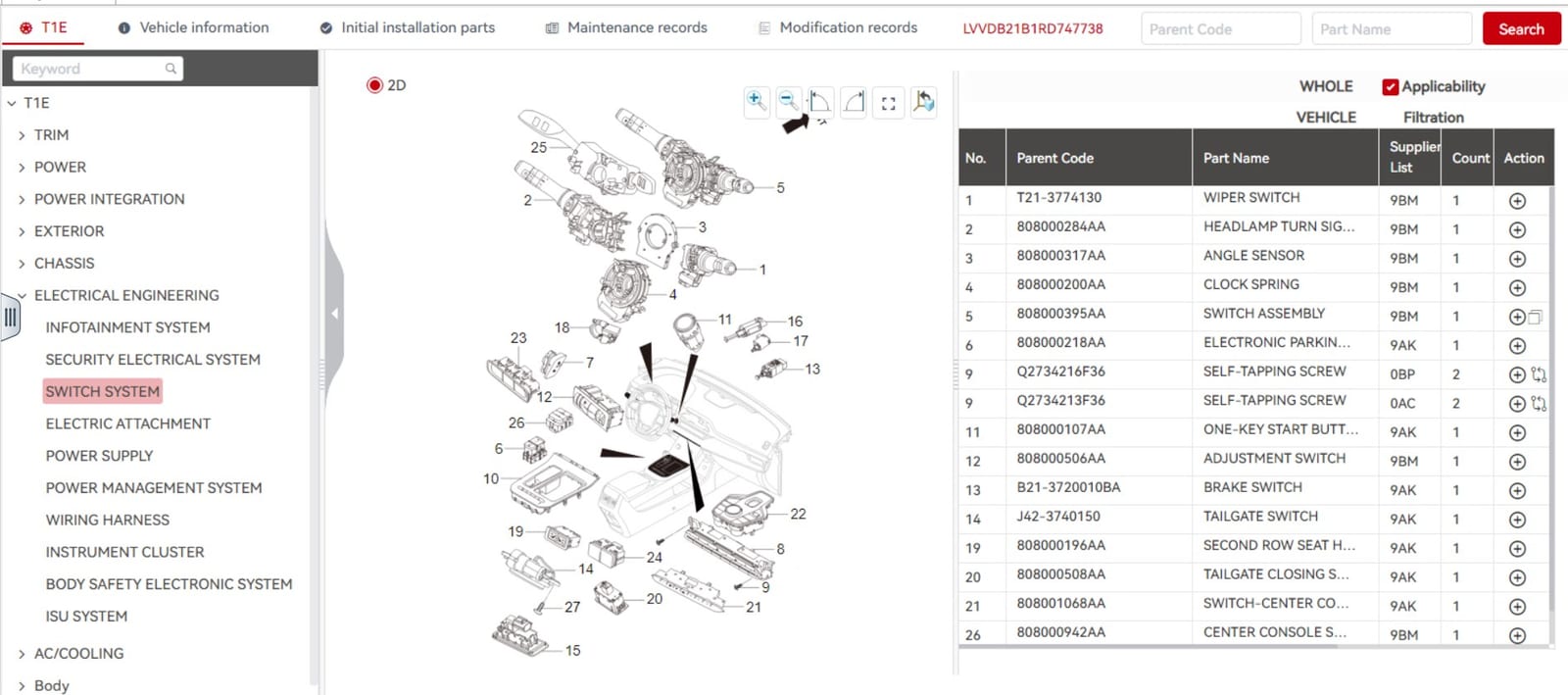

- The switch-system still is a separate example from the engine and electric drive sequence in the video.
Screenshots
